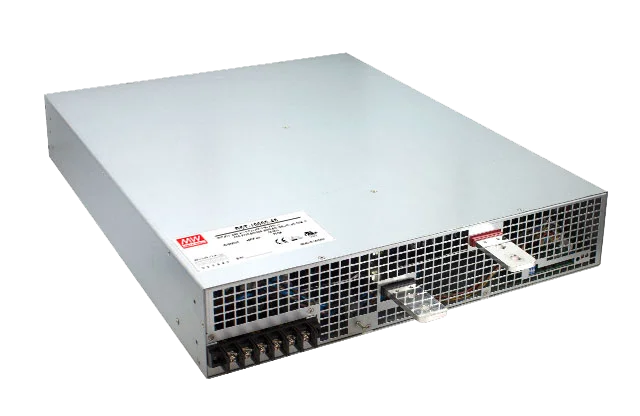

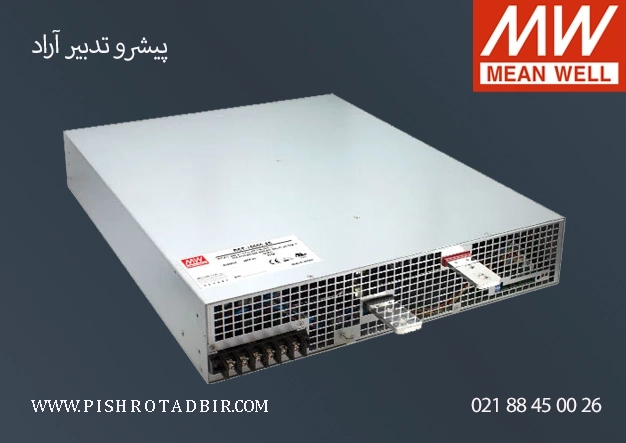

منبع تغذیه، ۱۰۰۰۰ وات، ۳۶ ولت، ۲۷۶ آمپر
MEAN WELL RST-10000:
RST-10000 is a 10 KW high-power single-output industrial enclosed type AC-DC power supply with built-in active PFC function, adapted to be supplied with three-phase voltage (delta or star connection). The available output voltages are 24, 36 and 48 VDC, the most frequently-used DC voltage in the industrial application field. It is possible to adjust the output voltage with a potentiometer or program using an external 1-6VDC voltage signal. This power supply device also have the function of setting the output current in the range of 20-100% using an external 1-5VDC voltage signal. The devices can be connected in parallel to increase the power to 20000W by connecting two RST-10000.
In the RST-10000 series, overload protection is achieved by a constant current limiting circuit with 2 modes; (1) it will work in continuous constant current mode when the output is overloaded and the output voltage is greater than 50% of the rated output voltage or (2) it will shut down after 5 seconds of constant current operation.
The Mean Well RST-10000 has an high efficiency of up to 91% and thanks to the built-in fan and can operate from -30°C ~ + 70°C and provide full load output under 50°C ambient temperature. Other features of this industrial power supply are the remote sense function, the remote ON/OFF control, the 12V/0.1A auxiliary power, the alarm signal outputs for AC fail, DC ok, fan fail and over temperature protection. Ideal applications of the RST-10000 switch mode power supply are in automation equipment, industrial control equipment, laser engravers, telecommunication systems and any applications which need high operating power.
RST-10000 Features:
- 3Ø input voltage: 3-wire Δ 196-305 VAC or 4-wire Y 340-530 VAC
- Built-in active PFC function
- High efficiency up to 90.5%
- Built-in fan speed control and fan failure alarm
- Output Voltage: 24 VDC, 36 VDC, 48 VDC
- Output Current: 400A@24V, 210A@48V, 276A@36V
- Output Voltage programmable from 20 to 120% by 1 ~ 6 VDC EXTERNAL VOLTAGE
- Constant current level can be trimmed to 20~100% by 1 ~ 5 VDC EXTERNAL VOLTAGE
- Active current sharing & parallel operation up to 20000 W (1+1)
- Remote ON-OFF control, Remote sense
- Auxiliary power 0.1A@12V
- Alarm Relay contacts and open-collector four output signals for OTP/DC-OK/AC-FAIL/FAN-FAIL
- Protection: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- Working temperature -30 ~ + 70 °C
- Certificates: UL60950-1, UL62368-1 / TUV EN60950-1, EN61558-1, EN61558-2-16 / CCC GB4943 / CB IEC60950-1, IEC62368-1
- Optional conformal coating
- Dimensions: 540 x 424 x 83.5 mm
- 5 year warranty
Available models:
- RST-10000-24 (24 VDC, 400 A)
- RST-10000-36 (36 VDC, 276 A)
- RST-10000-48 (48 VDC, 210 A)
Meanwell RST-10000-24 is a 10KW single output enclosed type AC/DC power supply with output: 24V, 400A, 9600W, 150 mVp-p, 23.5-28.8V adjustable. The product operates for the wide range three phase AC input (3 phase 3 wire/ Δ196~305VAC or 3 phase 4 wire / Y 340~ 530VAC). What’s more, RST-10000-24 is equipped with the DC output mostly needed from the industry. The model is cooled by the built-in fan with fan speed control. Apart from them, it could work for the temperature up to 70℃ with the high efficiency reaching up to 91%. In addition, RST- 10000-24 provides vast design flexibility via various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. Furthermore, it offers the complete protection functions such as Short circuit, Overload, Over voltage, Over temperature and Fan fail. Due to its longevity, high reliability and powerful performance, Meanwell RST-10000-24 functions as a high performance power supply solution for various industrial applications such as automation equipment, industrial control equipment, laser engraving machines, telecommunication systems and any application that requires high operating power.
