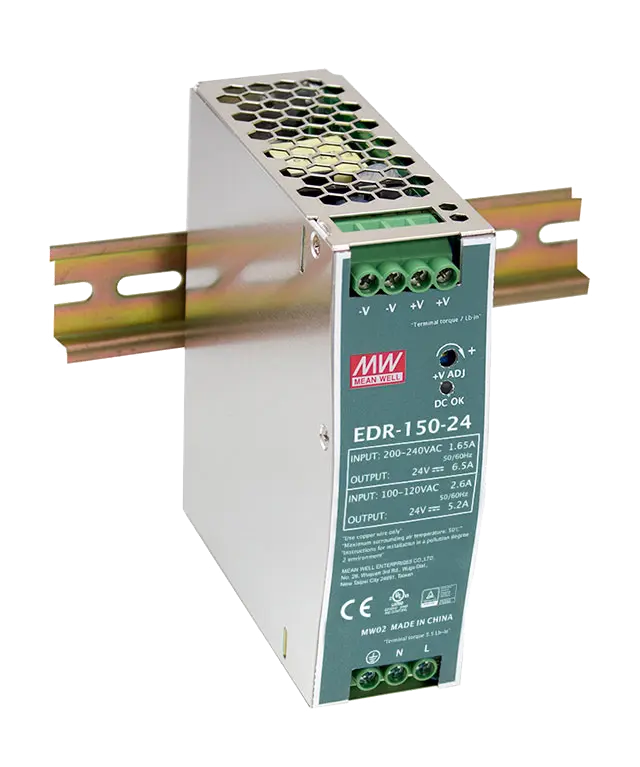

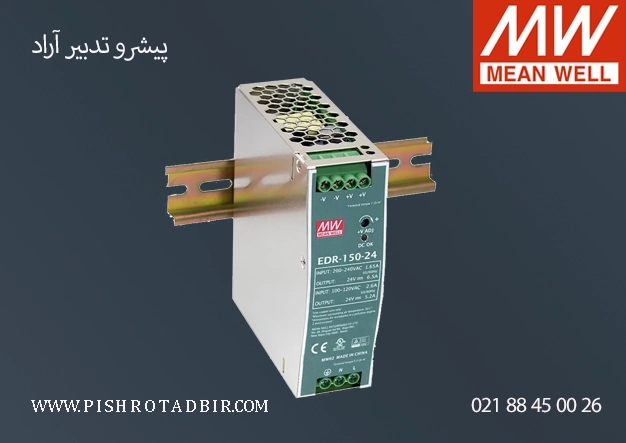

MEAN WELL’s EDR-150-24:

EDR-150-24 is one economical slim DIN rail power supply series, providing up to 156W at 230VAC input. This series is adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2(S800/0 Load), the norm the European Union regulates for harmonic current.

EDR-150-24 is designed with metal housing that enhances the units power dissipation. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -20 ºC and 60 ºC under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN62368-1 , and etc.) make EDR-150-24 a very competitive power supply solution for industrial applications.



EDR-150-24 Features:

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test

pdf logo EDR-150-SPEC
